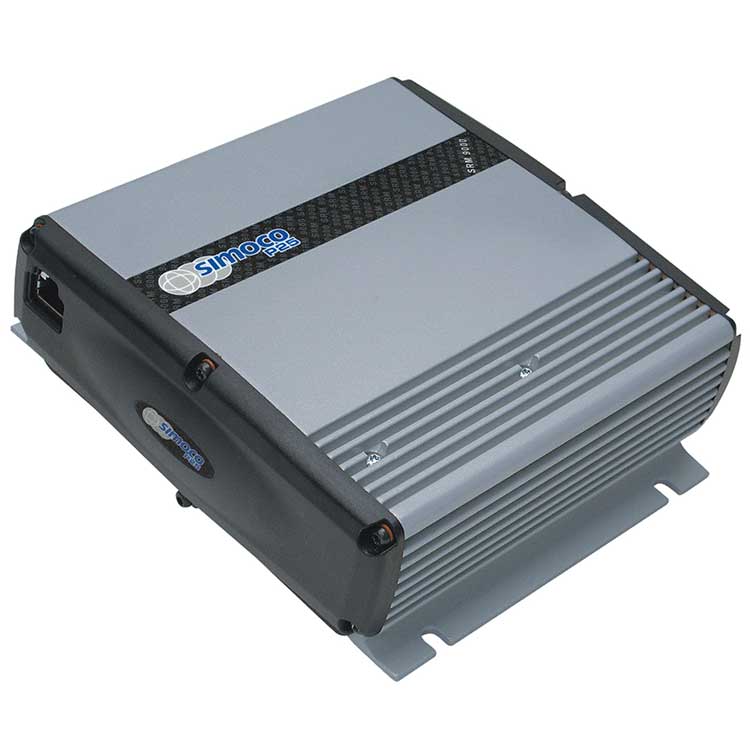

SRM9000 Mobile Radio
The SRM9000 mobile radio series provides leading edge radio communications.
The functionality provided by the unique Xmode platform ensures it will meet your current and future needs. SRM9000 mobile transceivers are highly customisable and can deployed in many configurations.
The SRM9000 Plus (P25) is available in 4 frequency bands and has boast worthy digital features, no feature has been an oversight in the design of this radio.
If you have any queries relating to this product, please feel free to contact us and one of our specialists will be happy to help.
P25 Operation Features
• P25CAP Compliant
• 40 zones
• 1500 channel pool
• Voting
• Trunked
• Scanning
• DES OFB and AES Encryption
• Individual Calls
• Emergency Call
• Analogue mode including scrambler, CTCSS, DCS, DTMF
| Frequency Bands: | E0 ~ 66-88MHz: AC ~ 136-174MHz: K1* ~ 174-208MHz: R3 335-400 MHz: UH ~ 440-520MHz: TU ~ 400-480MHz: * subject to availability |
| Channel Spacing: | 10, 12.5, 20 or 25 kHz selectable per channel |
| Dimensions: | (Transceiver only) 56 mm (H) x 170 mm (W) x 165 mm (D) |
| Weight: | 1.3 kg |
| Power Supply: | 10.8 -16.3 V DC |
| Channel Stability: | <1.5 ppm |
| Inputs/Outputs: | Ignition-sense input; PTT; Carrier Detect;On/Off; Configurable output |
| Antenna Connector: | 50 Ω BNC |
| Conformance: | EN 300 086, EN 300 113, EN 300 219,EN 300 279, AS4295, FCC, IC • P25CAP Compliant |
| Environmental Protection: | IP54 |
| Operating Temperature: | -30˚C to +60˚C Operating (Transceiver) -40˚C to +80˚C Storage |
| Simoco P25: | P25 compliant, 40 zones of 250 channels, Voting, Scanning, Trunked, 1000 channel pool, Individual Calls, Emergency Calls, Analog mode CTCSS/DCS/DTMF/Scrambler, DES-OFB and AES Encryption. |
| Trunked Operations: | MPT1327/1343 (1024 channels), 250 entry phonebook, Normal, Priority, Emergency, Group, Broadcast, Diversion, Busy and Queued Status Calls, Abbreviated dialing |
