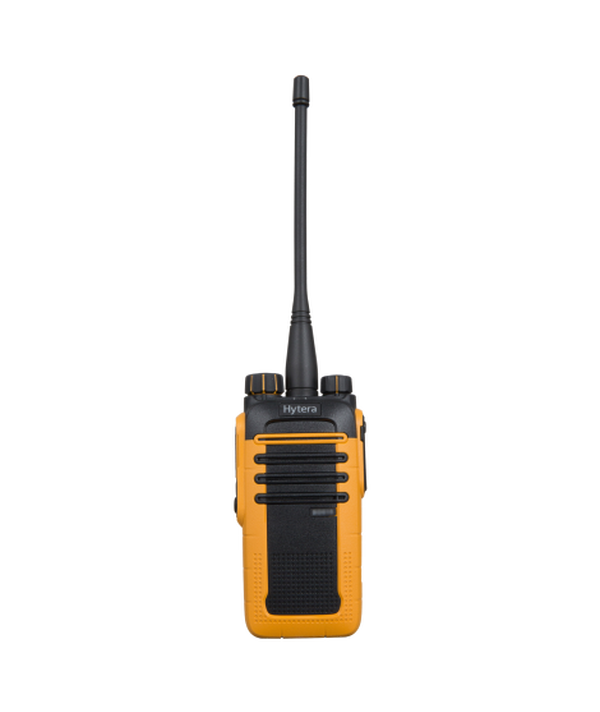

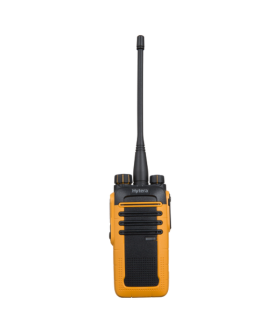

Hytera DMR Commercial Radio BD612

Hytera's new BD612 two-way radio inherits the excellent performance of its predecessor the TC-610 series and provides professional communication that is easy to operate effectively. The robust and reliable body can guarantee excellent product performance. The clear and loud sounding voice can cope better in multiple surroundings, these include noisy environments such as the outdoors and crowded areas.

Functions

Rugged and Reliable

The BD612 features a bold two-color design and is tested to meet the Military Standards of 810 G, including temperature shock management and vibration handling. The BD612 is also IP66 certified for dust and waterproof and its design guarantees reliability in different environments.

Clear Voice

Fitted with the latest digital encoding and correction technology, the BD612 caters for human voice to be transmitted clearer and without distortion, even over greater distances.

Excellent Performance

With a new, innovative design, the BD612 offers better performance than traditional analogue radios. With excellent reception sensitivity, it means the device can provide a stable communication with no interference.

Analogue and Digital

The BD612 can support both analogue and digital modes on the same hardware. You can easily switch between dual operation modes which helps you to communicate with more devices.

General

Frequency RangeUHF: 410-480MHzVHF: 136-174MHzChannel Capacity48Zone Capacity3Channel Spacing25/12.5KhzOperating Voltage7.4V (rated)Battery1500mAh lithium batteryBattery Life (5/5/90)Analog: 12 hours; Digital: 16 hoursWeight240g (with standard battery and antenna fitted)Dimensions108x54x29mm

Environmental

Operating Temperature Range-30℃~+60℃Storage Temperature Range-40℃~+85℃IP CertificationIP66 standard

Receiver

Sensitivity (Digital)0.22uV / BER 5%Sensitivity (Analogue)0.22uV (Typical) (12db SIN AD)Hum40dB @ 12.5kHzNoise45dB @ 12.5kHzRated Audio Power Output0.5WRated Audio Distortion<3%

Transmitter

RF Power OutputVHF High Power: 5WVHF Low Power: 1WUHF High Power: 4WUHF Low Power: 1WFM Modulation11K0F3E @ 12.5kHz16K0F3E @ 25kHzFM Hum40dB @ 12.5kHzFM Noise45dB @ 25kHzAudio Distortion<5%
