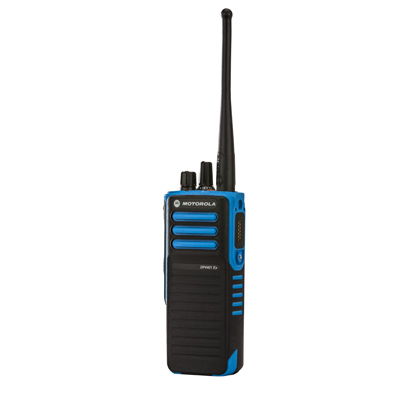

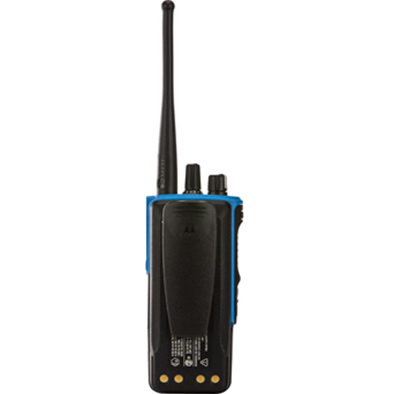

Motorola DP4401 EX ATEX Series

$2,636.00
DP4401 Ex
+ −

Threats from explosive gas or combustible dust, on an oil rig or in an open mine, your workers confront them daily. Safe, reliable communication is absolutely critical in such dangerous environments. That’s where the power and performance of MOTOTRBO digital portable radio stands out.

The DP4401 Ex ATEX-certified portable delivers unrivaled voice and data communications with integrated GPS plus best-in-class audio that includes Intelligent Audio and customizable voice announcements. Available in UHF and VHF frequency bands, the DP4401 Ex digital portable two-way radio is easy to use and features up to 64 channel capacity, three programmable buttons, emergency button, mandown and lone worker functions and IP67 specifications for submersibility.

With exceptional voice quality, long battery life and ATEX-certified for safety, DP4000 Ex Series UHF radios meet the requirements of SOLAS Chapter II-2 Regulation 10.10.4 for fire-fighter radios carried on board ships, and are certified to the 2014/90/EU Marine Equipment Directive (MED/5.20) and the Merchant Shipping (Marine Equipment) Regulations 2016 (UK/5.20). These DP4000 Ex Series radios carry the Wheel Mark and Red Ensign Mark that show they meet those marine requirements. See the Solutions Brief to learn more.


Features

    Best-in-class Audio

    Loud front-facing speaker and Intelligent Audio feature that automatically adjusts the radio volume according the environment’s noise level

    Text Messaging

    Send preprogrammed update messages to team members when radio communications need to be delivered without interrupting workers or guests

    Integrated GPS

    Locate mobile work teams using integrated GPS

    Emergency Button

    Orange button on the top of the radio can be programmed to send an alert to a supervisor or dispatcher during an emergency situation

    Security

    Three levels of scrambling or encryption built-in for increased security: 16-bit Basic Privacy, 40-bit Enhanced Privacy or 256-bit AES256 encryption.

    Transmit Interrupt

    Enables a user to interrupt another radio conversation to deliver critical communication exactly when and where it’s needed.

Performance Characteristics

  • Frequency band

    VHF, UHF

  • Repeater capable

    Yes

  • Battery life (based on a 05 05 90 duty cycle)

    19 hours in digital mode, 16 hours in analogue mode

  • Standard battery chemistry type

    Lithium Ion

  • 1 Watt

    Yes

Physical Characteristics

  • Emergency button

    Yes

  • Keypad

    None

  • Display

    No display

  • Weight (With 1400mAh LiIon battery)

    455.5g (16.1 oz)

  • Dimensions H x W x D (with standard battery)

    138.5 x 56.7 x 37.8 mm (5.45 x 2.23 x 1.49 in)

Radio Features

  • Transmit interrupt

    Yes

  • Digital private line

    Yes

  • Private line

    Yes

  • Monitor Permanent (Sticky) Monitor

    Yes

  • Lone worker

    Yes

  • GPS operation

    Yes

  • Voice announcement

    Yes

  • Signalling

    DMR, PL/DPL, MDC, Quik-Call II, 5-tone

  • Intelligent audio

    Yes

  • Programmable buttons

    Yes

  • Voice operated transmit (VOX)

    Yes

  • Time out timer

    Yes

  • Talkaround

    Yes

  • Scan types

    Normal, Priority, Dual priority, Nuisance channel delete, Talk group, All group, System, Home revert

  • Group call

    Yes

  • One to one calling

    Yes

  • Missed call alerts

    Yes

  • CPS (Customer Programming Software)

    Yes

  • Channel spacing

    12.5, 25, 20

  • Number of channels

    64

  • Channel scan

    Yes

  • Call tones

    Yes

  • Call forward

    Yes

  • Busy channel lockout

    Yes

  • Integrated voice and data

    Yes
